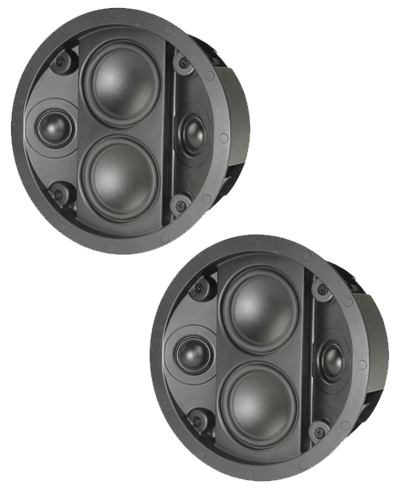

Mezzanine surrounds are designed to acoustically blend with Artison front channel solutions using similar high-end drivers. The tweeters are wired out of phase and the baffles are angled, making them hard to localize. Unique hybrid acoustic design is a Monopole/Dipole mix, allowing for sound “steering” needed for movies…without changing the natural ambiance of a musical recording.
Mezzanine surrounds are designed to be installed either in-wall or in-ceiling. For installation flexibility the standard round grille can be replaced with a square grille (purchased separately). The grilles are held in place by neodymium magnets and are flat and paintable, so they will easily blend into any environment.
Dimensions: 9.1”w (231mm) x 3.5”d (90mm)
Cut-Out hole: 7.5” (191mm) Diameter
Driver Complement:
2 - 3.5” (89mm) Polypropylene Midrange/Woofers
2 - 25mm Silk Dome Tweeters
Weight: 5.5 lbs / 2.55 kg
Cabinet / Finish: Closed Back Glass-Filled ABS, Satin Black
Grille: Micro-Perforated Steel, paintable White, magnetic
Frequency Response: 80 Hz – 20 kHz + 3 dB
Nominal Impedance: 6 Ω
Recommended Power: 50 – 150 Watts RMS
Sensitivity: 87 dB @ 2.83 Volts, 1 Meter
Enclosure Type: Acoustic Suspension, hybrid acoustic design
Accessories:
Optional Square Grilles – sold separately
Optional Pre Construction Brackets – sold separately
